Wednesday, May 30, 2012

How r u, Want 2 find U?

after 2 weeks of changing my mind again and again and again. Want 2 find u finally can move forward.

1. Use Key Points instead of the Contour/ outlines

😄 1. Key Points, in some degree, is better than the Contours to be representative of a picture

😄 2. Key Points are clear and can speed up the Process of Comparing

😢 1. Key Points may not contain as much as useful informations as the contours,

However, I don't think the user who sketch a face can definitely confirm that ---- what he draw is what he want. 😄

2. Use Key Point inside the Feature templates

3. Use the Proportion instead of the length.

!!! The papers I follow..

1. Face Recognition: Features versus Templates

2. Feature Points Extraction from Faces

!!! What I will do this and next week:

1. get the informations such as the LIP THICKNESS (necessary when i saw this..)

the thickness of the Eyebrow if possible.

2. check the Eye-lid --- if it is double fold eyelid. (necessary)

3. check the shape of the chin.

4. get the shape/outline of the eyes.

5. Get the SKETCH, do the preprocess of it in the same way.

6. Add the color of the Eye and Skin (already done)

7. compare.

Using KeyPoints

1. Locate the Features

use Haar Cascade Classifier to locate the Eyebrows, Eyes, Ears (not useful), Nose and Mouth.

2. Get Key Points

use SURF algorithm to get the key points.

2.1 about the Key Points, (x,y)

1. Eyebrow: eyebrow_l1, eyebrow_l2, eyebrow_r1, eyebrow_r2

2. Eye: eye_l1, eye_l2, eye_r1, eye_r2

3. Iris: iris_l, iris_r

4. Nose: nose_l, nose_m, nose_r

5. Mouth: mouth_l, mouth_m, mouth_r

6. Jaw: jaw

7. Face: face_l1, face_l2, face_r1, face_r2

x=111 y=104 laplacian=1 size=16 dir=90.000000 hessian=15466.430664

x=182 y=106 laplacian=1 size=15 dir=90.000000 hessian=12413.648438

x=192 y=110 laplacian=1 size=16 dir=90.000000 hessian=13282.147461

x=79 y=132 laplacian=1 size=15 dir=90.000000 hessian=13704.891602

x=92 y=137 laplacian=-1 size=16 dir=90.000000 hessian=11122.696289

x=105 y=175 laplacian=1 size=16 dir=90.000000 hessian=11498.058594

x=76 y=216 laplacian=1 size=16 dir=90.000000 hessian=14645.329102

x=220 y=139 laplacian=-1 size=32 dir=90.000000 hessian=15401.563477

x=93 y=146 laplacian=1 size=34 dir=90.000000 hessian=16285.532227

x=215 y=153 laplacian=1 size=31 dir=90.000000 hessian=13717.638672

x=228 y=211 laplacian=-1 size=31 dir=90.000000 hessian=22596.167969

x=53 y=227 laplacian=1 size=30 dir=90.000000 hessian=13204.163086

x=270 y=240 laplacian=1 size=30 dir=90.000000 hessian=18954.589844

x=89 y=153 laplacian=1 size=57 dir=90.000000 hessian=14741.933594

x=213 y=191 laplacian=1 size=62 dir=90.000000 hessian=15877.199219

x=230 y=221 laplacian=-1 size=58 dir=90.000000 hessian=32176.843750

3. Get the Length of the features, and the Distance among the features

(to make it easier to present, just show it like below)

(actually works like [(y2-y1)^2 + (x2-x1)^2]^(1/2))

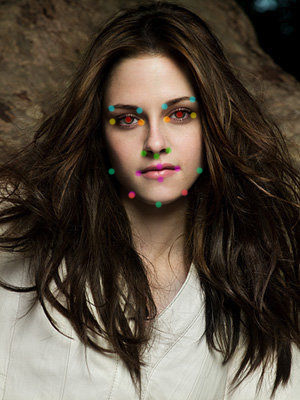

iris_dist = iris_r - iris_l ; (red points)

eye_length = eye_l2 - eye_l1 ; ( orange point, yellow point)

nose_width = nose_r - nose_l ; ( green points)

mouth_length = mouth_r - mouth_l ; (purple points)

eyebrow_length

= eyebrow_l2 - eyebrow_l1; (blue points)

eye_dist = eye_r2 - eye_l1; (orange points)

nose_mouth = nose_m - mouth_m; (green & purple)

face_length = face_r1- face_l1 ; (blue-green color points)

4. The Shape of the Face ----- Face Angle

i didn't make it to get all the key points i want on the outline of the face.

so i change it to be like

face_l1(x,y) -> find point face_l1(x,y) on FaceOutLine where x = Iris_l(x)

and also face_r1(x,y)

then find face_l2(x,y) -> find point face_l2(x,y) on FaceOutLine where x = eye_l1(x)

also face_r2(x,y)

face_angle1 = ( jaw(y) - face_l1(y) ) / ( jaw(x) - face_l1(x) )

face_angle2 = ( face_l1(y) - face_l2(y) ) / ( face_l1(x) - face_l2(x) )

face_angle = face_angle1 / face_angle2

after these four steps, I get the information of the face:

1. the length of nose, mouth, eyes, eyebrow

2. the distance of the Iris_Iris, Eye_Eye, nose_mouth...

use Proportion to compare

after getting the key points, i come across a problem
😭 Problem

Because the size of the head in different pictures are not the same, Using the Length and Distance to compare the pictures is far from accurate.

💡 Solution!

Proportion is used to help me get rid of this problem.

How?

Consider the iris_dist to be the base.

So..... I get:

eye_iris = eye_length / iris_dist ;
eyebrow_iris = eyebrow_length / iris_dist;
nose_iris = nose_width / iris_dist ;
mouth_iris = mouth_length / iris_dist ;

eye_dist_iris = eye_dist / iris_dist ;
nose_mouth_iris = nose_mouth / iris_dist ;

Monday, May 14, 2012

TrackBar & Color

TrackBar & Color
Last week, I disappeared from class. I got 2 midterms, and get sick after cse130-----OCAML : (.....

I didn't use the main color of the faces. And I didn't use HSV.

instead.

I tried to locate the nose, and get the average RGB value of the nose.

About Want 2 Find U
I added the find_by_face_color function, to my project.

1. TrackBar is used in this part to represent the COLOR.

(because the color of faces are usually white, yellow, red, brown, black. So I make 5 block in the track bar. (From low to high, That is from white to black))(you can see the track bar above the photo of Sophie Marceau)

(when you choose the first mark, you will receive all the photos have the color between white and yellow.
The second, you will receive photos of skin color from yellow to red.....)

NOW you can see only one pic of each mark, because I only have 5 pics in my database to show my idea in class, but Want 2 find U will have more photos.

NEXT: GET THE OUTLINE OF THE FACES, AND DO THE MATCH.
